HRK / HRK-UKB Line Vise Jaws

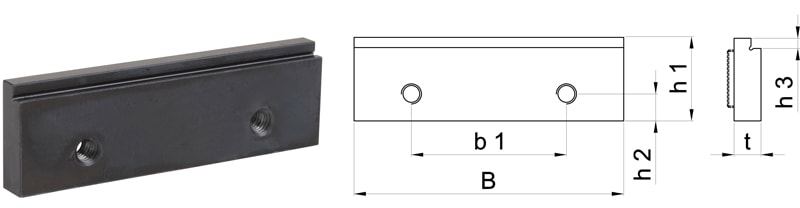

Step Jaws (pair)

 For Vise Type
Jaw Part-#
B b1 h1 h2 h3 t Price
USD
 HRK 44
K.0002.0197
inch 1.339 0.787 0.669 0.276 0.118 0.236 158.00 BUY
mm 34 20 17 7 3 6
 HRK 58
K.0002.0168
inch 2.047 1.181 0.827 0.315 0.118 0.236 185.00 BUY
mm 52 30 21 8 3 6
 HRK 90
K.0002.0115
inch 3.150 1.811 0.965 0.315 0.118 0.315 223.00 BUY
mm 80 46 24.5 8 3 8
 HRK 165
K.0001.0190
inch 4.724 2.756 1.614 0.630 0.197 0.394 380.00 BUY
mm 120 70 41 16 5 10
 HRK 260
K.0002.0154
inch 5.906 3.465 1.260 0.630 0.197 0.472 420.00 BUY
mm 150 88 32 16 5 12
* Jaws for HRK and HRK-UKB are interchangeable

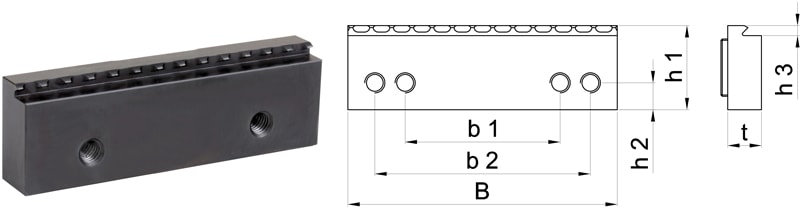

Step Jaws with Grip Rail (pair)

 For Vise Type
Jaw Part-#
B b1 b2 h1 h2 h3 t Price
USD
 HRK 44
K.0002.0198
inch 1.339 0.787 0.669 0.276 0.118 0.276 190.00 BUY
mm 34 20 17 7 3 7
 HRK 58
K.0001.0149
inch 2.047 1.181 1.654 0.827 0.315 0.118 0.354 220.00 BUY
mm 52 30 42 21 8 3 9
 HRK 90
K.0001.0179
inch 3.150 1.811 2.520 0.965 0.315 0.118 0.394 265.00 BUY
mm 80 46 64 25 8 3 10
 HRK 165
K.0001.0191
inch 4.724 2.756 3.701 1.614 0.630 0.118 0.472 415.00 BUY
mm 120 70 94 41 16 3 12
 HRK 260
K.0001.0150
inch 5.906 3.465 4.409 1.260 0.630 0.118 0.472 455.00 BUY
mm 150 88 112 32 16 3 12
* Jaws for HRK and HRK-UKB are interchangeable

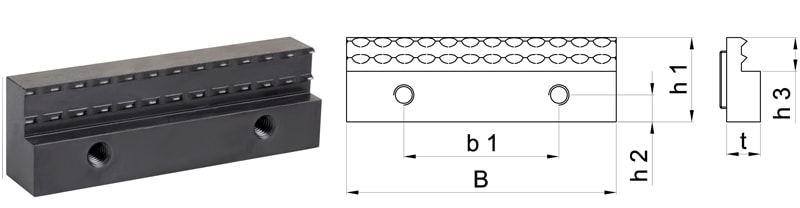

Step Jaws with 2 Grip Rails (pair)

 For Vise Type
Jaw Part-#
B b1 h1 h2 h3 t Price
USD
 HRK 44
K.0001.1042
inch 1.339 0.787 0.709 0.276 0.315 0.276 210.00 BUY
mm 34 20 18 7 8 7
 HRK 58
K.0001.0211
inch 2.047 1.181 0.827 0.315 0.394 0.354 230.00 BUY
mm 52 30 21 8 10 9
 HRK 90
K.0001.0178
inch 3.150 1.811 0.984 0.315 0.394 0.394 280.00 BUY
mm 80 46 25 8 10 10
 HRK 165
K.0001.0212
inch 4.724 2.756 1.614 0.630 0.394 0.472 430.00 BUY
mm 120 70 41 16 10 12
 HRK 260
K.0001.0213
inch 5.906 3.465 1.260 0.630 0.394 0.472 470.00 BUY
mm 150 88 32 16 10 12
* Jaws for HRK and HRK-UKB are interchangeable

Universal Jaws (pair)

 For Vise Type
Jaw Part-#
B b1 h1 h2 h3 h4 t Price
USD
 HRK 44
K.0002.0250
inch 1.339 0.787 0.669 0.276 0.118 0.433 0.236 270.00 BUY
mm 34 20 17 7 3 11 6
 HRK 58
K.0002.0251
inch 2.047 1.181 0.827 0.315 0.118 0.531 0.236 290.00 BUY
mm 52 30 21 8 3 13.5 6
 HRK 90
K.0002.0252
inch 3.150 1.811 0.965 0.315 0.118 0.630 0.315 310.00 BUY
mm 80 46 24.5 8 3 16 8
 HRK 165
K.0002.0253
inch 4.724 2.756 1.614 0.630 0.197 1.102 0.394 390.00 BUY
mm 120 70 41 16 5 28 10
 HRK 260
K.0002.0254
inch 5.906 3.465 1.260 0.630 0.197 0.610 0.472 480.00 BUY
mm 150 88 32 16 5 15.5 12
* Jaws for HRK and HRK-UKB are interchangeable

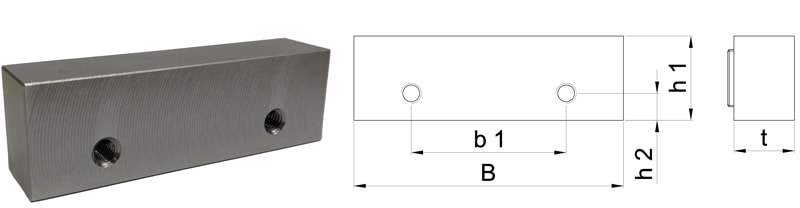

Soft Jaws (pair)

 For Vise Type
Jaw Part-#
B b1 h1 h2 t Price
USD
 HRK 44
K.0002.0255
inch 1.339 0.787 0.669 0.276 0.472 95.00 BUY
mm 34 20 17 7 12
 HRK 58
K.0002.0256
inch 2.047 1.181 0.827 0.315 0.551 108.00 BUY
mm 52 30 21 8 14
 HRK 90
K.0002.0257
inch 3.150 1.811 0.984 0.315 0.709 120.00 BUY
mm 80 46 25 8 18
 HRK 165
K.0002.0258
inch 4.724 2.756 1.614 0.630 1.181 132.00 BUY
mm 120 70 41 16 30
 HRK 260
K.0002.0259
inch 5.906 3.465 1.260 0.630 0.945 155.00 BUY
mm 150 88 32 16 24
* Jaws for HRK and HRK-UKB are interchangeable
Application Examples:

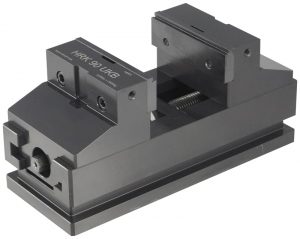

DERO HRK 90 UKB with Step Jaws
