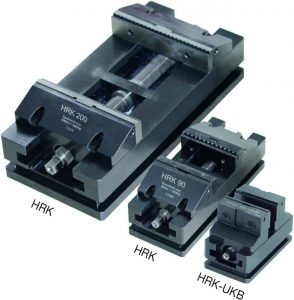

HRK Precision Centering Vises

DERO HRK Centering Vises are specially developed for use on multi-axis machining centers and are available in 5 sizes.
HRK vises are suited for individual part clamping and for clamping on palletizing systems.
Parts clamping repeatability ranges from less than 0.0004” to less than 0.0012”, depending on the vise size.
All DERO vises are

HRK Line

 Vise Type L1 B1 B2 H1 H2 S1 SW Repeat
ability
Torque
[ft lb]
Clamping force
[lbf]
Weight
[lb]
Price *
USD
 HRK 44 inch 3.937 1.339 1.378 0.945 1.614 1.654 7/32  < 0.0004 14 1,125 1.5 830.00 BUY
mm 100 34 35 24 41 42 5.5  < 0.01
 HRK 58 inch 5.118 2.047 2.087 1.220 2.047 2.283 9/32 < 0.0004 18 2,250 3.8 885.00 BUY
mm 130 52 53 31 52 58 7 < 0.01
HRK 90 inch 7.874 3.150 3.189 1.969 2.953 3.937 13/32 < 0.0006 60 3,600 13.0 1,155.00 BUY
mm 200 80 81 50 75 100 10 < 0.015
 HRK 165 inch 10.630 4.724 4.764 2.598 4.213 6.535 5/8 < 0.0008 220 13,500 34.4 2,295.00 BUY
mm 270 120 121 66 107 166 16 < 0.02
 HRK 260 inch 14.961 5.906 5.945 2.677 3.937 10.630 5/8 < 0.0012 220 13,500 56.0 3,170.00 BUY
mm 380 150 151 68 100 270 16 < 0.03
* Includes one set of hardened steel jaws (Step Jaws with Grip Rail) with each HRK Vise
DERO HRK Centering Vise Technical Drawings
NOTES:
  • For best results, secure HRK centering vises with a torque wrench (not included) to achieve a consistent clamping force.
  • Custom clamping jaws made to your specification are also available from DERO to suit your company’s unique clamping needs. Request a quote from contact@industrycontrolling.com
Additional jaw options are available for each type of HRK vise at the link below.
Application Examples:

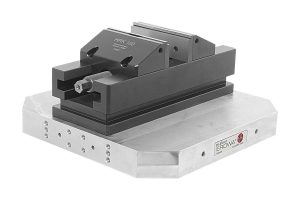

DERO HRK 165 on erowa palletizing system
DERO HRK 260 in use on a machining center
