HRK-UKB Precision Centering Vises

DERO HRK-UKB Centering Vises are specially developed for use on multi-axis machining centers and have reversible jaws for an extended range of clamping.
Available in 5 sizes, HRK-UKB vises are suited for individual part clamping and for clamping on palletizing systems.
Parts clamping repeatability ranges from less than 0.0004” to less than 0.0012” depending on the size of the vise.
All DERO vises are

HRK-UKB Line

 Vise Type L1 L2 B1 B2 H1 H3 S2 SW Repeat
ability
Torque
[ft lb]
Clamping force
[lbf]
Weight
[lb]
Price *
USD
 HRK 44 UKB inch 3.937 4.252 1.339 1.378 0.945 2.008 2.598 7/32  < 0.0004 14 1,125 1.5 895.00 BUY
mm 100 108 34 35 24 51 66 5.5  < 0.01
 HRK 58 UKB inch 5.118 5.748 2.047 2.087 1.220 2.520 3.386 9/32 < 0.0004 18 2,250 3.8 965.00 BUY
mm 130 146 52 53 31 64 86 7 < 0.01
 HRK 90 UKB inch 7.874 8.504 3.150 3.189 1.969 3.740 5.827 13/32 < 0.0006 60 3,600 13.0 1,245.00 BUY
mm 200 216 80 81 50 95 148 10 < 0.015
HRK 165 UKB inch 10.630 12.087 4.724 4.764 2.598 5.236 7.992 5/8 < 0.0008 220 13,500 34.4 2,395.00 BUY
mm 270 307 120 121 66 133 203 16 < 0.02
 HRK 260 UKB inch 14.961 16.220 5.906 5.945 2.677 4.882 12.913 5/8 < 0.0012 220 13,500 56.0 3,275.00 BUY
mm 380 412 150 151 68 124 328 16 < 0.03
* Includes one set of hardened steel jaws (Step Jaws with Grip Rail) with each HRK-UKB Centering Vise
DERO HRK-ULB Centering Vise Technical Drawings
NOTES:
  • For best results, secure HRK-UKB centering vises with a torque wrench (not included) to achieve a consistent clamping force.
  • Custom clamping jaws made to your specification are also available from DERO to suit your company’s unique clamping needs. Request a quote from contact@industrycontrolling.com
Additional jaw options are available for each type of HRK-UKB vise at the link below.
Application Examples:

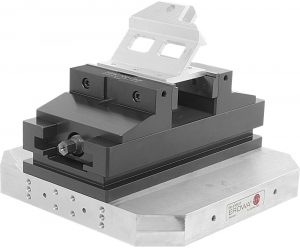

DERO HRK 260 UKB on erowa palletizing system
