RS Ultra-Precision Centering Vises

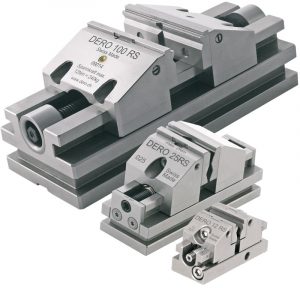

DERO RS Centering Vises achieve ultra-precision through exceptionally high clamping accuracy and repeatability.
RS vises are made from stainless steel and are used primarily for various grinding, EDM and measuring operations.
Parts centering accuracy is guaranteed to reach less than 0.0002” (0.005 mm) and clamping repeatability less than 0.0004” (0.01 mm), thus rendering DERO RS vises the most precise centering vises in the world.
All DERO vises are

RS Line

 Vise Type L1 B1 B2 H1 H2 S1 SW Repeat
ability
Centering accuracy
[ft lb]
Torque
[lbf]
Clamping force
[lb]
Weight Price *
USD
 RS 12 inch 1.575 0.630 0.650 0.472 0.787 0.630 1/16  < 0.0002  < 0.0004 0.7 0.143 1,995.00 BUY
mm 40 16 16.5 12 20 16 1.5  < 0.005  < 0.01
 RS 25 inch 3.228 1.181 1.181 0.945 1.654 1.142 1/8 < 0.0002 < 0.0004 1.5 225 1.1 2,950.00 BUY
mm 82 30 30 24 42 29 3 < 0.005 < 0.01
 RS 100 inch 8.110 3.150 3.189 1.969 2.933 4.252 13/32 < 0.0002 < 0.0004 30 1,800 13.2 3,990.00 BUY
mm 206 80 81 50 74.5 108 10 < 0.005 < 0.01
* Includes one set of hardened steel jaws (Universal Jaws) and an angled socket wrench with each RS Centering Vise

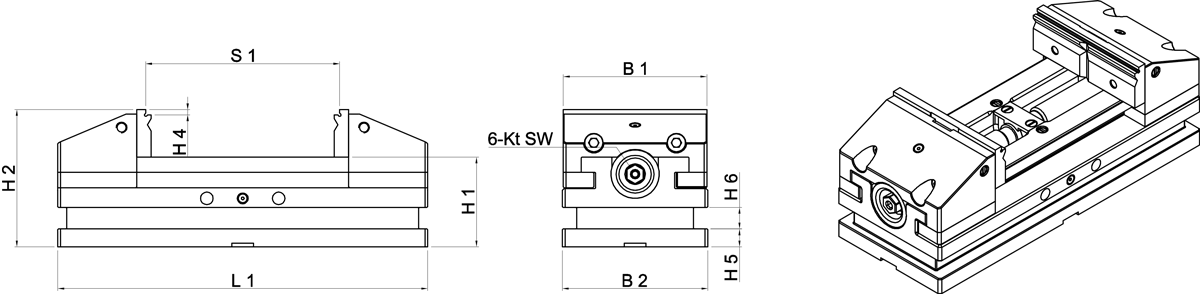

DERO RS Centering Vise Technical Drawings
NOTES:
  • Custom clamping jaws made to your specification are also available from DERO to suit your company’s unique clamping needs. Request a quote from contact@industrycontrolling.com
Additional jaw options are available for each type of RS vise at the link below.
Application Examples:
DERO RS 12 with Universal Jaws
DERO RS 100 in use on a height gauge
