FRIBOSA Shop – Tool Room Vises & Measuring Table

These ultra-precise hold-down tool room vises provide superior stability and deliver the uppermost repeat clamping accuracy. Made of uncompromised construction, these vises are commonly used for highly precise manufacturing and measuring operations.
Offering all of the same features and construction as the “Ultra-Precision Vises with Hex Drive”, these vises have a spindle with crank handle instead of the hex drive.
Both vise types are available with or without a V-Groove.

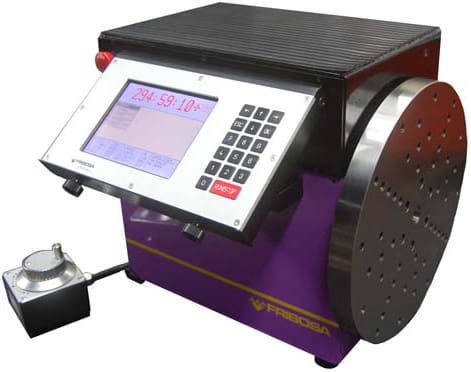

For the most difficult measurement challenges in a manufacturing environment or within the quality department, this innovative measuring table tackles coordinates, angles, flatness and part structure such as surfaces, curves and more.

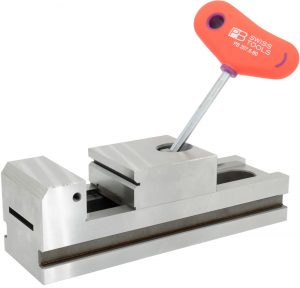

Ultra-Precision Vises with Hex Drive
FRIBOSA Hold-Down Tool Room Vises are manufactured with an extremely tight tolerance of 0.00012” (0.003 mm), thus guaranteeing ultra-precise clamping accuracy and repeatability.
This uncompromising construction and design not only keeps your part firmly seated on the vise but also offers secure and easy handling for increased versatility, precision, cost-efficiency and safety within your manufacturing and measuring operations.
All vises are made from hardened and normalized tool steel and are suited for a diverse range of industries for precise small to medium lot milling, boring, grinding, measuring and other operations.
FRIBOSA vises are

Hex Drive Vise with V-Groove

 Vise Type
Article Number
a b max. c d e f g s Manufact. Tolerance Weight
[lb]
Price
USD
 0  (2″/45 mm) inch 5.906 2.559 0.866 1.772 0.984 1.969 1.772 0.518 0.00012 2.9 1,082.00 BUY
 401000070 mm 150 65 22 45 25 50 45 13.15 0.003
 A  (2.5″/65 mm) inch 8.268 3.543 1.260 2.559 1.457 2.787 2.559 0.709 0.00012 8.4 1,235.00 BUY
 401000150 mm 210 90 32 65 37 70.8 65 18 0.003
 B  (4″/100 mm) inch 10.630 4.724 1.575 3.937 1.575 3.614 3.071 1.063 0.00012 21.4 1,634.00 BUY
 401000230 mm 270 120 40 100 40 91.8 78 27 0.003
 C  (5″/125 mm) inch 11.811 5.512 1.772 4.921 1.772 3.939 3.346 1.063 0.00012 33.1 1,834.00 BUY
 401000310 mm 300 140 45 125 45 100.05 85 27 0.003

Hex Drive Vise without V-Groove

 Vise Type
Article Number
a b max. c d e f g s Manufact. Tolerance Weight
[lb]
Price
USD
 0  (2″/45 mm) inch 5.906 2.559 0.866 1.772 0.984 1.969 1.772 n/a 0.00012 2.9 1,082.00 BUY
 401000050 mm 150 65 22 45 25 50 45 n/a 0.003
 A  (2.5″/65 mm) inch 8.268 3.543 1.260 2.559 1.457 2.787 2.559 n/a 0.00012 8.4 1,235.00 BUY
 401000130 mm 210 90 32 65 37 70.8 65 n/a 0.003
 B  (4″/100 mm) inch 10.630 4.724 1.575 3.937 1.575 3.614 3.071 n/a 0.00012 21.4 1,634.00 BUY
 401000210 mm 270 120 40 100 40 91.8 78 n/a 0.003
 C  (5″/125 mm) inch 11.811 5.512 1.772 4.921 1.772 3.939 3.346 n/a 0.00012 33.1 1,834.00 BUY
 401000290 mm 300 140 45 125 45 100.05 85 n/a 0.003
NOTES:
FRIBOSA Tool Room Vise with Hex Drive Technical Drawings

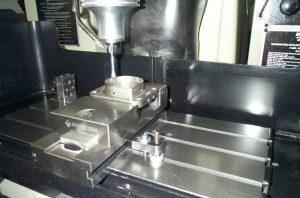

Application Example:
FRIBOSA Type C (5”/125 mm) Tool Room Vise with Hex Drive
Ultra-Precision Vises with Spindle
FRIBOSA Hold-Down Tool Room Vises are manufactured with an extremely tight tolerance of 0.00012” (0.003 mm), thus guaranteeing ultra-precise clamping accuracy and repeatability.
This uncompromising construction and design not only keeps your part firmly seated on the vise but also offers secure and easy handling for increased versatility, precision, cost-efficiency and safety within your manufacturing and measuring operations.
All vises are made from hardened and normalized tool steel and are suited for a diverse range of industries for precise small to medium lot milling, boring, grinding, measuring and other operations.
FRIBOSA vises are

Spindle Vise with V-Groove

 Vise Type
Article Number
a b max. c d e f g s t Manufact. Tolerance Weight
[lb]
Price
USD
 0  (2″/45 mm) inch 5.906 2.953 0.866 1.772 0.984 1.969 1.772 0.518 6.811 0.00012 3.1 926.00 BUY
 401000030 mm 150 75 22 45 25 50 45 13.15 173 0.003
 A  (2.5″/65 mm) inch 8.268 3.937 1.260 2.559 1.457 2.787 2.559 0.709 9.488 0.00012 8.8 1,067.00 BUY
 401000110 mm 210 100 32 65 37 70.8 65 18 241 0.003
 B  (4″/100 mm) inch 10.630 5.118 1.575 3.937 1.575 3.614 3.071 1.063 12.087 0.00012 22.0 1,334.00 BUY
 401000190 mm 270 130 40 100 40 91.8 78 27 307 0.003
 C  (5″/125 mm) inch 11.811 5.906 1.772 4.921 1.772 3.535 3.346 1.063 13.378 0.00012 33.5 1,692.00 BUY
 401000270 mm 300 150 45 125 45 89.8 85 27 339.8 0.003

Spindle Vise without V-Groove

 Vise Type
Article Number
a b max. c d e f g s t Manufact. Tolerance Weight
[lb]
Price
USD
 0  (2″/45 mm) inch 5.906 2.953 0.866 1.772 0.984 1.969 1.772 n/a 6.811 0.00012 3.1 926.00 BUY
 401000010 mm 150 75 22 45 25 50 45 n/a 173 0.003
 A  (2.5″/65 mm) inch 8.268 3.937 1.260 2.559 1.457 2.787 2.559 n/a 9.488 0.00012 8.8 1,067.00 BUY
 401000090 mm 210 100 32 65 37 70.8 65 n/a 241 0.003
 B  (4″/100 mm) inch 10.630 5.118 1.575 3.937 1.575 3.614 3.071 n/a 12.087 0.00012 22.0 1,334.00 BUY
 401000170 mm 270 130 40 100 40 91.8 78 n/a 307 0.003
 C  (5″/125 mm) inch 11.811 5.906 1.772 4.921 1.772 3.535 3.346 n/a 13.378 0.00012 33.5 1,692.00 BUY
 401000250 mm 300 150 45 125 45 89.8 85 n/a 339.8 0.003
NOTES:
FRIBOSA Tool Room Vise with Spindle Technical Drawings
Application Example:
FRIBOSA Type C (5”/125 mm) Tool Room Vise with Swivel-base
Spare Parts for FRIBOSA Vises

Refurbishment Kit for Vises with Hex Drive

For Vise Type
Part-#
Price
USD
 0  (2″/45 mm)  For Vise-#: 401000070 & 401000050 204.00 BUY
 201100160
 A  (2.5″/65 mm)  For Vise-#: 401000150 & 401000130 248.00 BUY
 201300160
 B  (4″/100 mm)  For Vise-#: 401000230 & 401000210 268.00 BUY
 201500170
 C  (5″/125 mm)  For Vise-#: 401000310 & 401000290 299.00 BUY
 201700170

Refurbishment Kit for Vises with Spindle

For Vise Type
Part-#
Price
USD
 0  (2″/45 mm)  For Vise-#: 401000030 & 401000010 168.00 BUY
 201000170
 A  (2.5″/65 mm)  For Vise-#: 401000110 & 401000090 193.00 BUY
 201200170
 B  (4″/100 mm)  For Vise-#: 401000190 & 401000170 215.00 BUY
 201400180
 C  (5″/125 mm)  For Vise-#: 401000270 & 401000250 235.00 BUY
 201600170

Crank Handle for Vises with Spindle

For Vise Type
Part-#
Price
USD
 0  (2″/45 mm)  For Vise-#: 401000030 & 401000010 26.00 BUY
 201000140
 A  (2.5″/65 mm)  For Vise-#: 401000110 & 401000090 29.00 BUY
 201200140
 B  (4″/100 mm)  For Vise-#: 401000190 & 401000170 32.00 BUY
 201400140
 C  (5″/125 mm)  For Vise-#: 401000270 & 401000250 39.00 BUY
 201600140
