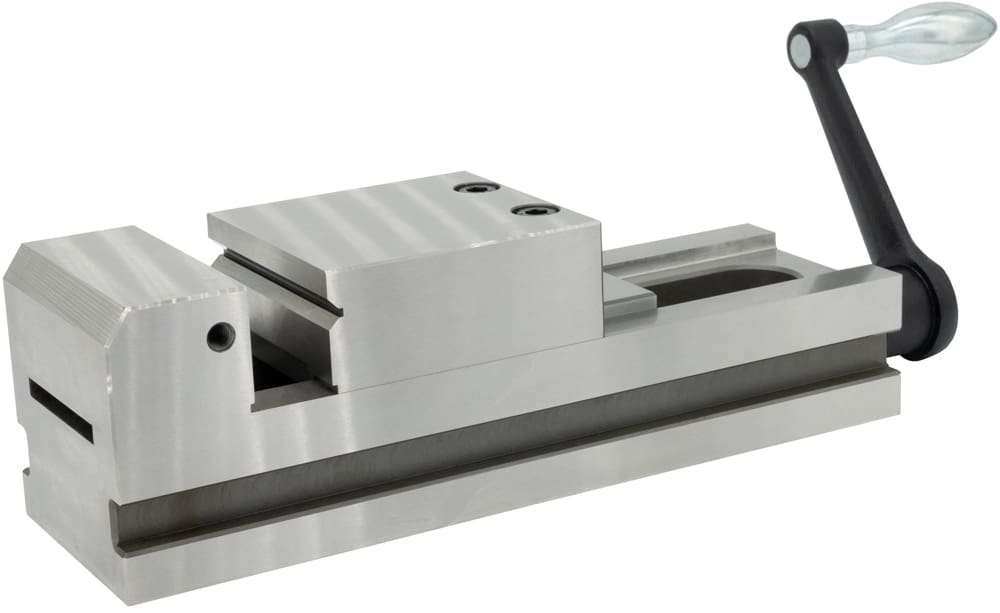

Ultra-Precision Vises with Spindle

FRIBOSA Hold-Down Tool Room Vises are manufactured with an extremely tight tolerance of 0.00012” (0.003 mm), thus guaranteeing ultra-precise clamping accuracy and repeatability.
This uncompromising construction and design not only keeps your part firmly seated on the vise but also offers secure and easy handling for increased versatility, precision, cost-efficiency and safety within your manufacturing and measuring operations.
All vises are made from hardened and normalized tool steel and are suited for a diverse range of industries for precise small to medium lot milling, boring, grinding, measuring and other operations.
FRIBOSA vises are

Spindle Vise with V-Groove

 Vise Type
Article Number
a b max. c d e f g s t Manufact. Tolerance Weight
[lb]
Price
USD
 0  (2″/45 mm) inch 5.906 2.953 0.866 1.772 0.984 1.969 1.772 0.518 6.811 0.00012 3.1 926.00 BUY
 401000030 mm 150 75 22 45 25 50 45 13.15 173 0.003
 A  (2.5″/65 mm) inch 8.268 3.937 1.260 2.559 1.457 2.787 2.559 0.709 9.488 0.00012 8.8 1,067.00 BUY
 401000110 mm 210 100 32 65 37 70.8 65 18 241 0.003
 B  (4″/100 mm) inch 10.630 5.118 1.575 3.937 1.575 3.614 3.071 1.063 12.087 0.00012 22.0 1,334.00 BUY
 401000190 mm 270 130 40 100 40 91.8 78 27 307 0.003
 C  (5″/125 mm) inch 11.811 5.906 1.772 4.921 1.772 3.535 3.346 1.063 13.378 0.00012 33.5 1,692.00 BUY
 401000270 mm 300 150 45 125 45 89.8 85 27 339.8 0.003

Spindle Vise without V-Groove

 Vise Type
Article Number
a b max. c d e f g s t Manufact. Tolerance Weight
[lb]
Price
USD
 0  (2″/45 mm) inch 5.906 2.953 0.866 1.772 0.984 1.969 1.772 n/a 6.811 0.00012 3.1 926.00 BUY
 401000010 mm 150 75 22 45 25 50 45 n/a 173 0.003
 A  (2.5″/65 mm) inch 8.268 3.937 1.260 2.559 1.457 2.787 2.559 n/a 9.488 0.00012 8.8 1,067.00 BUY
 401000090 mm 210 100 32 65 37 70.8 65 n/a 241 0.003
 B  (4″/100 mm) inch 10.630 5.118 1.575 3.937 1.575 3.614 3.071 n/a 12.087 0.00012 22.0 1,334.00 BUY
 401000170 mm 270 130 40 100 40 91.8 78 n/a 307 0.003
 C  (5″/125 mm) inch 11.811 5.906 1.772 4.921 1.772 3.535 3.346 n/a 13.378 0.00012 33.5 1,692.00 BUY
 401000250 mm 300 150 45 125 45 89.8 85 n/a 339.8 0.003
NOTES:
FRIBOSA Tool Room Vise with Spindle Technical Drawings
Application Example:

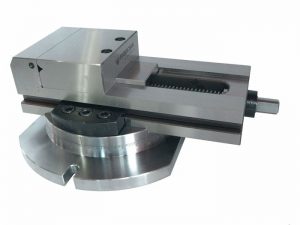

FRIBOSA Type C (5”/125 mm) Tool Room Vise with Swivel-base
